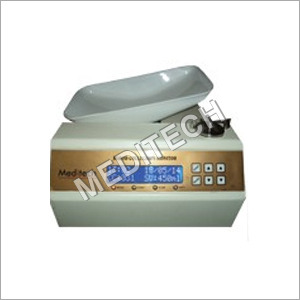

Blood Collection Monitor

Blood Collection Monitor
Blood Collection Monitor
Product Code : 01
Product Description



With firm commitment to quality and optimum client satisfaction, we are involved in manufacturing, supplying and exporting Blood Collection Monitor. These collection monitors helps in perfect blood collection without any clotting of blood cells. The standards of volumes can be easily changes, even these can paused during blood collection and standards of volume can be changed during the pause. Our Blood Collection Monitor is reckoned for its high performance, durability and reasonable prices




Features of Blood collection monitor

  • Manual Weight Calibration of Blood collection monitor

  • Auto Calibration

  • Display in Vol and Grams

  • RPM Setting 1 to 16 RPM

  • Real Time Clock Setting

  • Date Setting

  • Battery Backup for 12 Hours continuous Blood Collection Monitor

  • Large BlueLCD Display

  • Audio Video Alarms

  • LED Display Indication

  • RS232 connect to Computer

Blood Collection Monitor is helpful for accurate blood collection.It’s a compact instrument to provide smooth and gentle rocking of homogenous mixing with anticoagulant. i.e. without clot formation of blood cells during collection of blood from a donor. Our Electronic Blood Collection Monitor has preset standard volumes which are easy to change. It has the provision of pausing collection and changes programmed volume during pause. It has a micro controller based program and its volume can be set from 1ml to 999ml. We are the largest Meditech Blood Collection Monitor Exporters not only in India but in the global markets as well known for our optimum quality products, tensile strength, great performance and affordable prices.

Fully automatic microprocessor based Blood Collection Monitor or Blood Mixing Device provides efficient mixing of blood wit 10-12 cycles/min. Automatic termination of blood collection, when blood collection volume reaches a preset value. LCD display shows volume of collected blood, time-taken for blood collection.

Clamp of Blood collection monitor operates automatically or manually when set volume of blood is collected. Battery back-up of our meditech blood collection monitor is for 4-20 hours depending upon the requirements with very compact model.

Technical Specifications



Catalogue Number

MTBCM -01







Input Voltage







100-250 VAC 50/60 Hz











Operation







Continues Operation with Intermittent Loading











Power







12W (Max)











Working Environment


















Temperature







0° to 40°C











Relative Humidity







30 to 75%











Atm Pressure







700 to 1060hPa











Battery







Full Charge Battery 8 hours continuous operation blood collection monitor











Storing and Transportation Temperature







-20° to 40°C











Relative Humidity







20 to 90%











Atm Pressure:







600 to 1060hPa











Oscillation details







15± 2 rpm, motor driven oscillation. Adjustable for 1 to 15 RPM











Clamping Mode







Both automatic and Manual tube Clamping. Automatic clamping when the preset volume is achieved











Volume Setting







Insteps of 1 ml. Automatic storage of set volume. Continuous
display of set and current volume











Auto Tare







The Machine Automatically calibrates the weight each time when
the Start Button is pressed











Alarms/Indications







LCD,LED indication and audible alarm when there is no Blood
flow .LCD, LED indication and audible alarm at the end of
collection.











Display







Large 16×2 line character Backlit LCD display











Time Measurement







Time of collection is indicated at the end of every collection.Display of time during collection











Accuracy







2% of the programmed volume











Dimension in mm







height:140mm; length:250mm; width: 250mm











Weight







4.8 kg blood collection monitor











Battery







12V, 2.3 AH Sealed Maintenance free lead acid rechargeable
battery











RTC







Inbuilt Real Time Clock











Time setting







Display of time on the main screen and editable











Date Setting







Display of date on the main screen and editable











RPM







Setting RPM of motor can be set from 0 to 25











RS 232







RS 232 port for data extraction from BCM to Computer
